Cube Baby Multi Effect Pedal User Manual

Posted Date: 2024-11-12 15:23:03 Reads: 105

File Size:: 0 B

Cube Baby Manual

Multi Effect Pedal Instruction

CUBE BABY is a portable multi-functional bass or guitar effect. It has three preset factory tones, or users can edit the tones and save custom presets. Operation is simple and intuitive, the unit has a built in battery, and can be charged if you are not able to use a power supply. Cube Baby has 9 classic IR amp sounds, two effects(Chorus or Phaser ),Tape Delay, Reverb, and Eight Classic Cabinet IRs. Cube Baby is a high precision audio interface, and can record to a mobile phone, or audio interface. Built in bluetooth capabilities allow you to do wireless music playback. Cube Baby is an integrated multi-fx unit that is small in size, portable, has good performance, and high quality sound. Try it with your guitar!

The power supply:

▉lt is equipped with built-in battery for power supply, which can last for 6 hours after full charge.

▉The device can be charged with a mobile phone power supply and supports playing/charging simultaneously.

▉The charging time depends on the output power of the charging transformer. For

example, the charging head with an output power of dc5.0v / 2.0A can be fully charged within 2 hours when the built-in battery is exhausted.

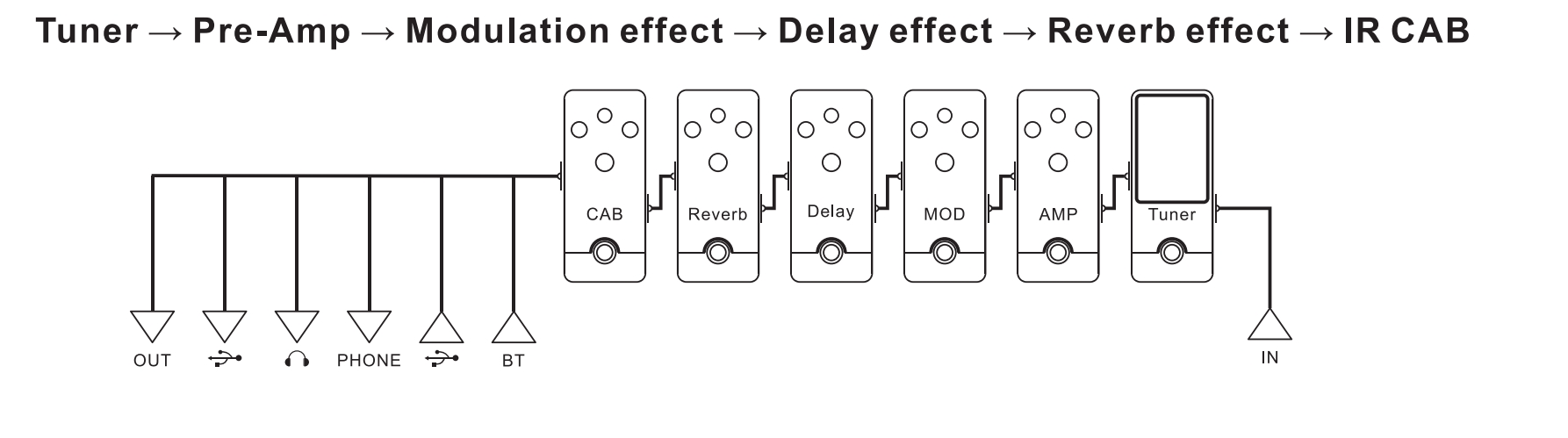

I. Effects module link

Getaria Music

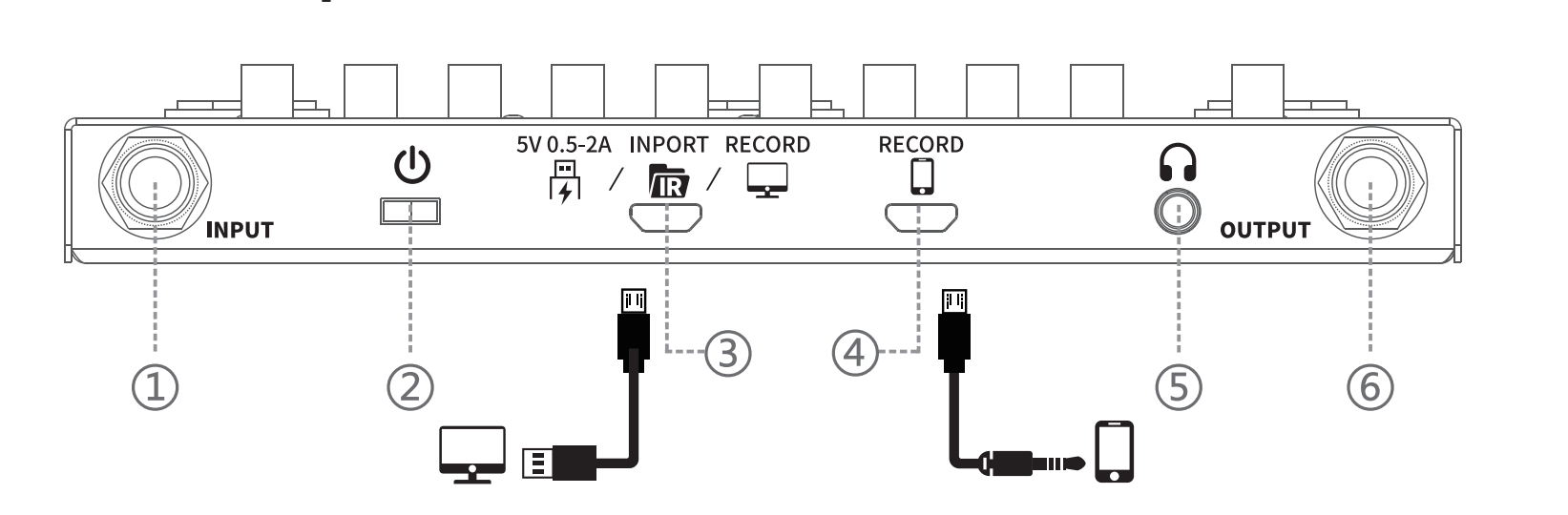

Ⅱ.Rear panel

Getaria Music

①IN: Used to connect signal input of guitar.

②Power switch

③USB port: Used to charging, built-in USB audio interface function. It can be connected to the computer for recording playback, support computer software import third party IR CAB.

④Mobile phone port: Used for recording and playback of mobile phones.

⑤Headphone output: Connect to headphone.

⑥OUT: Mono output, connected to a speaker or mixer.

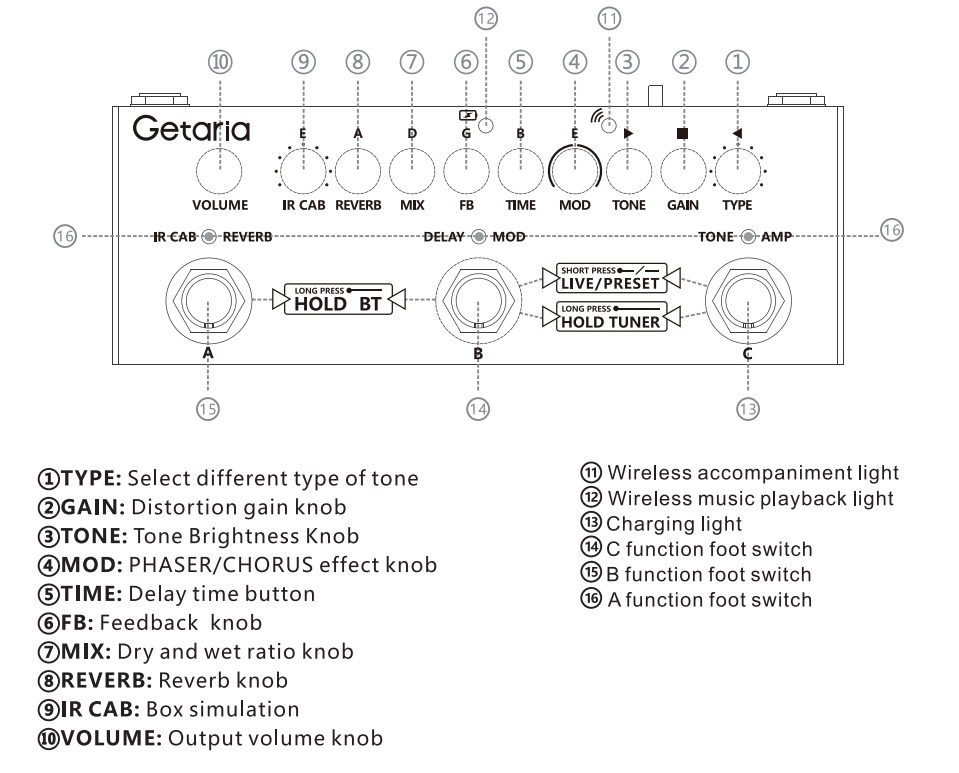

Ⅲ.Front panel

Getaria Music

IV.Effect module

1.AMP IR timbre module

TYPE knob: select the TYPE of IR. Please refer to the following list for specific TYPE.

IR NAME	Gear	•GAIN knob: select box tone, specific model please refer to the list on the right. •TGAIN knob: Adjust distortion. MOD module •TONE knob: Adjust the brightness of the tone.
US GOLD 50 B	1
UK Gold Clean	2
Cali-MK 3 Clean	3
Power-Zone Dist	4
Power-Zone Clean	5
US Gold 100 Clean	6
Cali JP A	7
Cali JP B	8
Gas Station Clean	9

2.DELAY module

●TIME Knob: Control the delay time.

FB Knob: Control feedback size.

MIX Knob: Adjust the wet/dry ratio, and turn the MIX knob to the far left to turn off delay, the knob indicator light off.

3.REVERB module

●REVERB Knob: Turn to the far left to turn off, at which point the knob light goes out. The amount of reverb to the right gradually increases. The REVERB knob light goes out when the REVERB module is turned off.

4.IR module

IR CAB knob: A total of 9 gears, the first gear is closed gear, 2 to 9 gears are 8 different sizes of the box, the following table is the factory preset box.

The body name	Box specifications	The gear
Closed box mold		1
Fender Princeton	1X12	2
Fender Princeton ll	1X12	3
Fender Pro Junior	1X10	4
GH Dual Rectifier	4X12	5
Line 6 Vetta	1X10	6
Soldano	2X12	7
Recabinet Mesa Boogie Standard	4X12	8
Marshall 1960A & 1960B	2X12	9

.CUBE BAB allows user to load third-partay IR, using the USB cable that come with the products to import third-party IR box simulation files via the manufacturer’s free software CUBE-SUGAR online.

*When the original IR documents are covered and replaced, they cannot be recalled, please be careful before doing so.

5.TUNER Module

CUBE BABY obtains a highly sensitive tuner, which is used as follows;

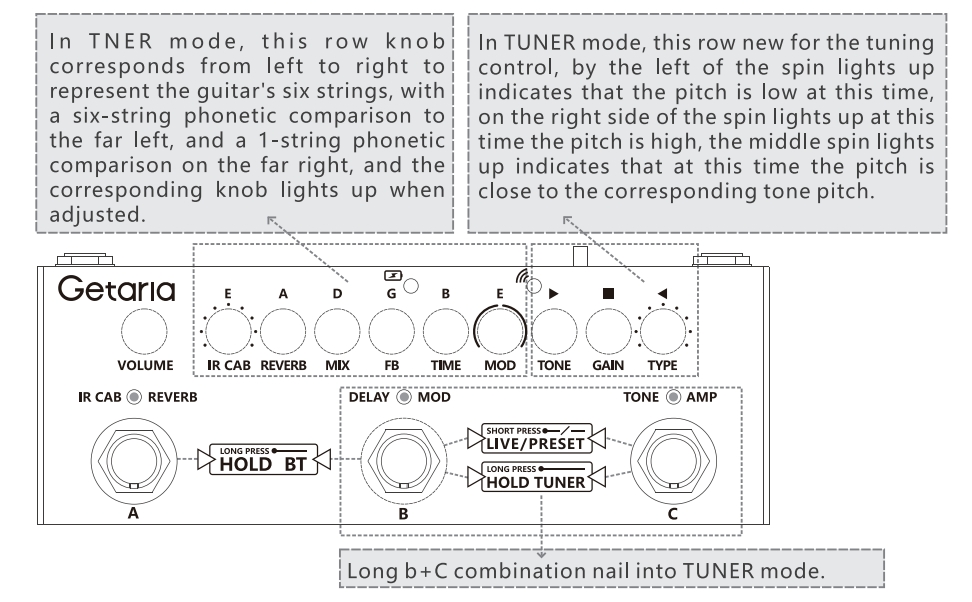

Long step combination foot nail “B+C” into TURNER tuning mode, the tuning meter using the parameter knob light on the host panel to display the tuning of the tone and instant pitch, please see the illustration:

Getaria Music

After tuning, press any foot switch to exit TUNER mode.

6.Wireless accompaniment input function

CUBE BARY includes wireless music playback, which allows users to play accompaniment during practice or performance, and long term stepping on the combination of “A+B” to turn on or off the wireless accompaniment function, When the device is not connected successfully, the wireless light flashes slowly, and when the connection to the phone /tablet setting is successful, the light lights up blue, Press the “A+B”pin again until the light goes out to exit this function.

7.Mobile recording function

CUBE BABY includes high-quality phone recording capabilities that connect the device's phone socket to your phone/tablet via an internal recording cable, allowing high-quality recording using your phone/tablet/recording software.

V.LIVE/PRESET Mode

●CUBE BABY has two modes of operation, LIVE for real-time editing mode and

PRESET mode. The initial power-on default enters PRESET mode, short press the

combination nail "B+C" for LIVE PRESET mode switching.

A.LIVE Mode

In LIVE mode, the "A/B/C" function pin is responsible for turning the corresponding effect module on/off, and the corresponding function light is always on or off. In LIVE mode, the user can edit the tone effect chain and hold the pin for long to save.

B.PRESET Mode

1.this effect device for the user preset three classic tones for the factory tone;

Sound position	Effect chain	Type
A Foot switch	Cali JP B +DELAY+REVEBR+IRCAB:Soldano 2X12	Distortion
B Foot switch	Power-Zone Dist+DELAY+REVEBR+IR CAB: Fender Pro Princeton Il 1X12	Overload
C Foot switch	UK Gold Clean+CHORUS +DELAY +REVEBR+IR CAB:Fender Pro Junioor 1X10	Voiceless

2. In PRESET mode, use the A/B/C function to pin to select the factory tone or the user saves the tone. Unlimited switching between preset three sets of tones, with the staple indicator for the selected tone flashing.

VI.How to edit a tone

1.Power-on initialization; when the built-in battery is fully charged or the power supply USB cable is connected, please turn off the power switch . At this time, the parameter button turns on from left to right and then from right to left to self-test . After the host self-test is completed, the system defaults to the PRESET mode. The tone on the current A / B / C pedal become the factory tone.

2.Press the B and C pedals at the same time to switch to LIVE mode. Then, please check whether all the parameter buttons are turned off.Turn the VOLUME to the appropriate level, and the output volume should not be too high, that will avoid damage to the connected speaker equipment.

3. To start editing the tone, press the C foot switch to open the tone module, and set

the TYPE button to the 7th position (please refer to the become data sheet for item 1 of question 4 in this guide) and select the distorted tone named Cali JP B. Next, turn the GAIN distortion gain button to the 3 o'clock position, and select the brightness of the tone you want.

I set the TONE parameter to the 12 o'clock position of the clock (the users can evaluates the distortion gain and tone brightness parameters that needed).

4. Next, we step on the B foot switch to turn on the MOD and DELAY modules. Because I expected to adjust a relatively pure distortion SOLO tone, I did not consider the effect of using MOD. Please turn the MOD knob to the clock at 12 o'clock. The MOD effect is turned off, and the knob indicator is turned off. Then turn the MIX button to turn on the DELAY effect. Turn the MIX knob to the 9 o'clock position, the FB knob to the 11 o'clock position, and the TIME button to the 2 o'clock position. I need this tone with sufficient delay effect so that I can play more smoothly with slower phrases.

5. Next we will on the A pedal to turn on the REVER Band IR CAB modules. Please adjust REVERB to the 11 o'clock position to make this tone reflect more space. Then I moved the IR CAB knob to the seventh position, and I chose a Soldano 2X12 cabinet.

6.Next we need to adjust the output volume of the edited tone. I set the VOLUME knob to the 1-point position of the clock.(lt is recommended that you set the output volume value of the VOLUME knob according to your needs)

7. When it is determined that the tone has been edited and the output volume is adjusted, we can save the edited tone in the PRESET mode, so that we can call the edited tone at any time when playing. Please select the stud positions you want to store (this effect supports the storage of three tones, which, the A / B / C stud positions in the preset mode).Here I choose the A stud positions and long A stepping on the nail, the prompt of A stepping on the foot switch will flash quickly, indicating that the tone is being stored, until the flashing stops, and the tone has been stored.

8. At this time, the tone that was just edited has been successfully stored in the PRESET mode, covering the tone preset by the factory in the A-stamp. We stepped on the B and C at the same time to switch from the LIVE mode to the PRESET mode. Step on the A pedal to find the Cali JP B distortion solo sound you just saved.

Vl. The software interface is divided into 2 parts

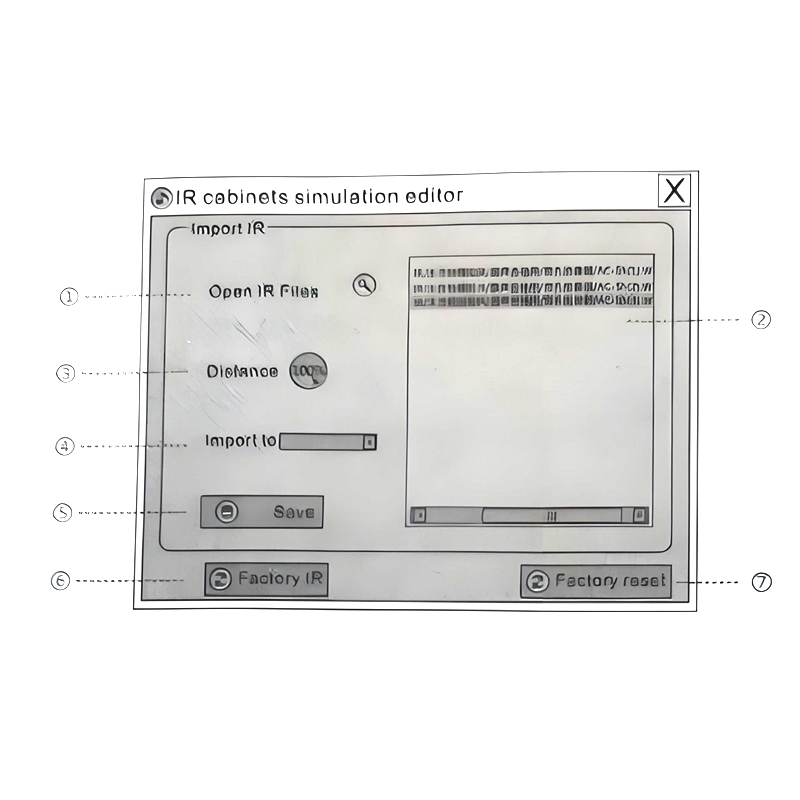

1.Custom IR section

①.IR file search box : use this search box to find the IR file you have prepared on your computer.

②.IR file name display window : this window displays the selected IR file, which is convenient for us to click and listen.

③.Pickup microphone distance simulator : through this knob, you can adjust the distance of the microphone to the speaker. The closer the distance, the greater the sound, the farther the distance, the smaller the sound.

④.Storage location : this drop-down serial number is the CUBE-BABY internal IR storage location. You can select the location corresponding to lr cab modules 1-8 to store the third-party IR.

⑤.Save button : when the third-party IR is selected, the microphone pickup distance is adjusted, and the storage number position is selected, we can click this button to save.

⑥. Click this button to restore the factory IR.

⑦. Click this button to restore the factory tone parameters.

Getaria Music

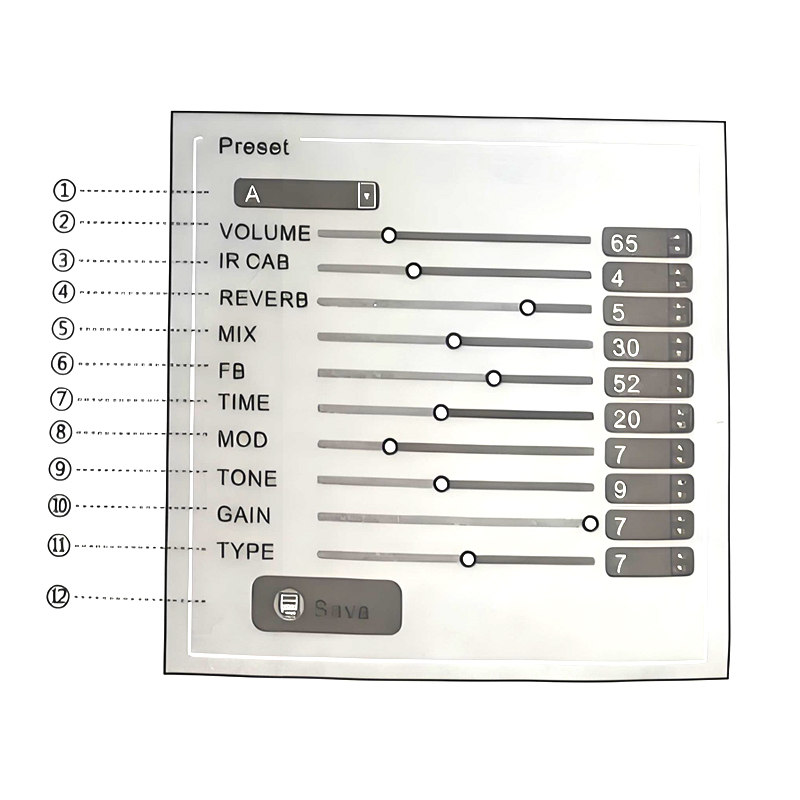

2. Preset adjustment part

①. select the preset that needs to be adjusted (there are 3 sets of presets to choose from), if the software and equipment are in the same set of presets, you can hear the real-time adjustment effect.

②. Adjust the current preset output volume (equivalent to the knob VOLUME).

③. Adjust the analog sound of the IR cabinet (equivalent to the knob IR CAB).

④. Adjust the reverberation (equivalent to the knob REVERB).

⑤.Adjust the dry-wet ratio (equivalent to the knob MIX).

⑥. Adjust the feedback amount (equivalent to the knob FB).

⑦. Adjust the delay time (equivalent to the knob TIME).

⑧. Parameters 1-6 are chorus effect, 7 is close MOD module, 8-15 is phase effect (equivalent to knob MOD).

⑨. Adjust the brightness of the tone (equivalent to the knob TONE).

⑩Adjust the distortion (equivalent to the knob GAIN).

⑪Adjust the amp tone (equivalent to the knob TYPE).

⑫Tone save button.

Note: If the adjusted preset is not saved, it will be restored to the parameters before the adjustment after the device is powered off.

Getaria Music

VII Technical parameters

Input	Standard 1/4" interface mono/TS
Output	Standard 1/4" interface mono/TS
Sample rate	48K/24bit
Battery capacity	600mah
Size	162(D)X61(W)X23(H)mm
Weight	260g
Attachment	Instructions,charging data cables,internal cables

IX.Covering the original IR files

●CUBE BABY allows users to load third party IR, using the USB cable that comes with the product to import third-party IR box simulation files via the manufacturer's free software cube-suite online computer.

X.Warranty after sale

If there are any questions,please scan the QR code and feedback,we will help you

solve them as soon as possible.
