GWS-26 USER MANUAL

Getaria Music

Main Features

Thank you for choosing our GWS-26 wireless audio transmission system.

GWS-26 is designed for electronic instruments wireless connection. We do

our best to present you with this low noise, low latency, high resolution and

long transmission product. Enjoy yourself with the wireless system!

GWS-26 gives you the following high-quality experiences:

Main Features:

▉5.6ms latency, performance more smooth, wonderful music inspiration

on tap!

▉5.8GHz wireless transmission band, 24bit/48KHz sample rate, high

quality, low interference, lossless, professional sound quality!

▉30 meters effective distance, go where cables can't go.

▉8 hours+ continuous use time.

▉1.5 hours quick charge.

Precautions

Power supply

The product has a built-in 1100mAh battery and the product support

quickly charging. While charging, please make sure that the device is shut

down to avoid the loss of electricity during charging, which will lead to

longer charging time and shorter battery life. Turn off your wireless device

when you are not using it, or the battery will continue to consume.

Connection

Please always turn off the power of the equipment when connecting or

disconnecting with the instrument. It will help to prevent the damage cause

to this product and other relevant equipment.

Interference

In practice, wireless systems are affected by two conditions:

(1)this device may not cause harmful interference, and

(2)this device must accept any interference received, including the

interference that may cause undesired operation.

Warning

▉To reduce the risk of electric shock o fire, do not expose the device in rainy or humid conditions.

▉Turn the device off before charging, which avoids to a long charging time.

Specification

▉Sample Rate: 24bit/48KHz uncompressed professional sound quality.

▉Wireless Band:5.8GHz band,

▉Latency:5.6ms.

▉Range: 30 meters outdoor or 15 meters wall distance.

▉THD+ Noise: -98dB.

▉Dynamic Range: > 105dB A weighted.

▉Frequency Response:20-20KHz,1dB/-3dB.

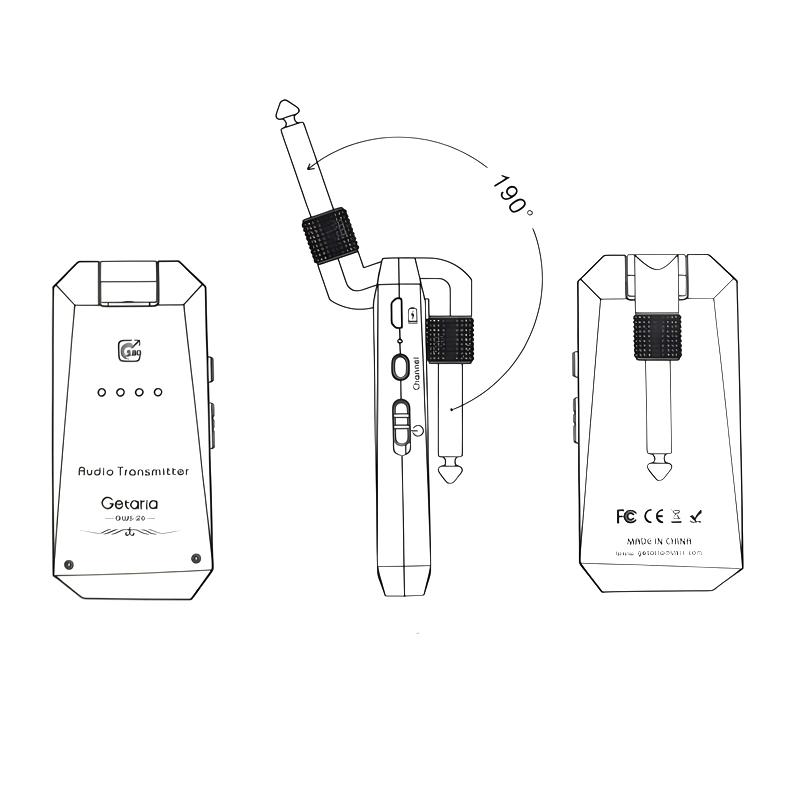

▉190°rotating head, fit for most kinds of instruments.

▉Support 4 sets of devices work at the same time.

▉Battery Capacity: 1100mAh.

▉Charging Device: 1in 2 out USB charging cable, support quick charge.

▉Dimension of single body (mm): 43 (L) X27 (W) X138.5(H).

▉Packaging Dimension (mm): 153.5(L)X120.5 (W) X43(H).

▉Weight of a single body: 48g.

▉Weight of all:216g.

Getaria Music

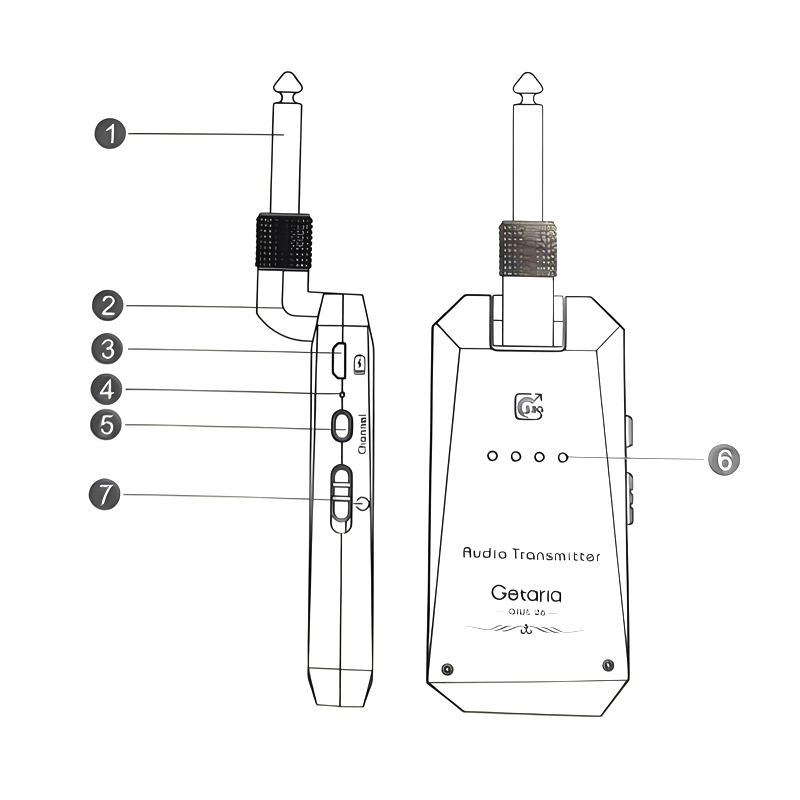

Transmitter

①Signal in, connect to your instruments, such as guitars, mussels,

blowtorches, etc.

②190°rotating head, fit for most of the music instruments.

③USB port for charging, support quick charge.

④LED indicator

Red LED: LED light has two states.

Light up:

The device is charging or the battery is running out.

Blue LED: Indicates that the battery charging is finished.

⑤Channel Switch button: press and hold this button to switch

channel, a total of four channels exchange from left to right.

⑥Channel LIGHT: A total of four channels from left to right, when the

channel is selected, the corresponding light lit.

⑦Power switch: Turn the power on or off.

Getaria Music

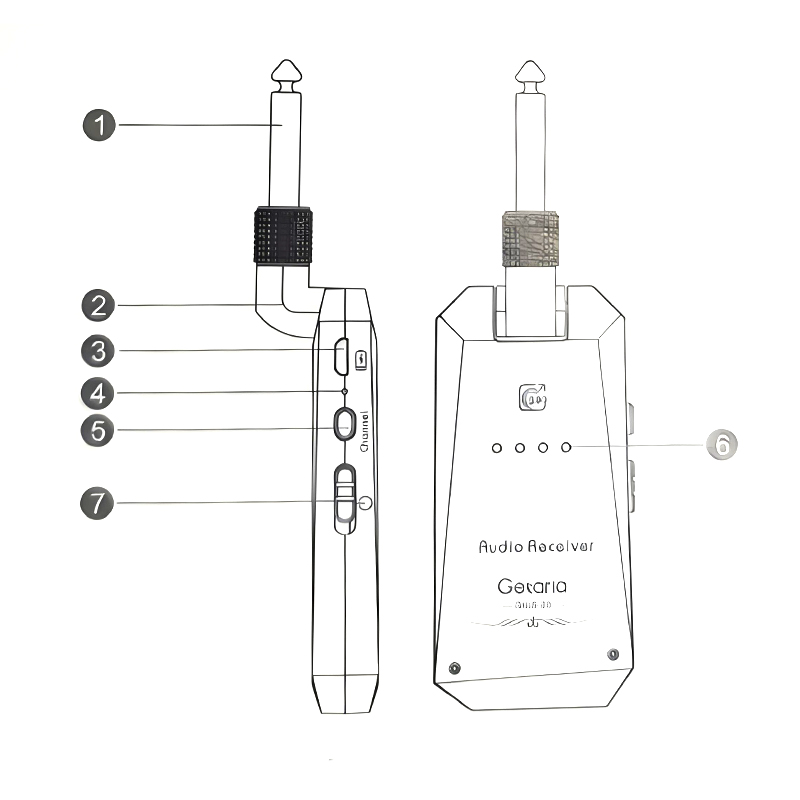

Receiver

①signal out, connect to your instruments, such as guitars, mussels,

blowtorches, etc.

②190°rotating head, fit for most of the music instruments.

③USB port for charging, support quick charge .

④LED indicator

Red LED: LED light has two states

Light up:

The device is charging or the battery is running out.

Blue LED: Indicates that the battery charging is finished.

⑤Channel Switch button: press and hold this button to switch

channel, a total of four channels exchange from left to right.

⑥Channel LIGHT: A total of four channels from left to right, when the

channel is selected, the corresponding light lit.

⑦Power switch: Turn the power on or off.

Getaria Music

HOW TO USE

▉Plug in the Transmitter to your instrument signal output port, and plug in

the Receiver to amplifier or pedal input port.

▉Turn on the Transmitter or Receiver, if the Transmitter and Receiver's

LED is lit on red (low battery), please charge the device before using.

▉select channel: 1-4 channels are selectable, the Transmitter and

Receiver must select the same channel. For example, when the

Transmitter selects channel 2, the Receiver must also select channel 2.

▉Please charge your Transmitter and Receiver through the USB port,when

the charging is finished, the LED indicator lit on blue. If the power is

running out, the LED indicator will lit on red, if the LED indicator not lit,

then you needs charge about 10 minutes to active the battery.Note:

please turn off the power before charging.

▉Our wireless system can support 4 pairs of devices work non-interference

under the same environment.

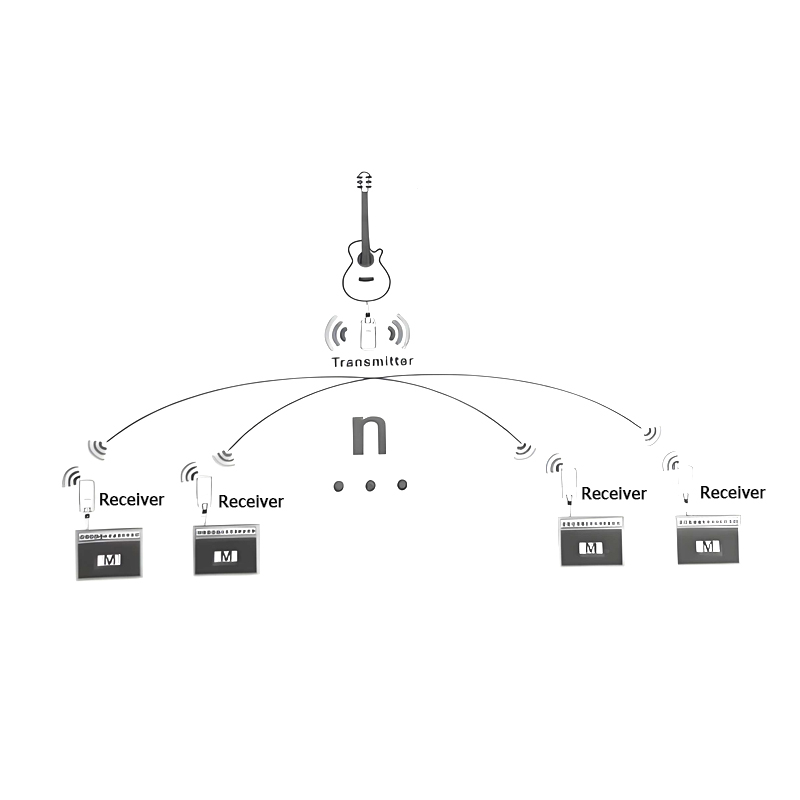

▉Our wireless system can also support one Transmitter transmit signal to

multiple(unlimited) Receivers at the same time, as shown below:

Getaria Music

Method:

Power on multiple Receivers and select the channel you want to connect to

(all Receivers must select the same channel), then power on the Transmitter

and select the corresponding channel selected for multiple Receivers to use.

For example, if you use both four Receivers to select the second channel, the

Transmitter must also select the second channel.

FAQ

1.Q: Device cannot be powered on and doesn't work.

A: If the device unused for a long time, or powered off during low battery but

then doesn't charge in time. The battery enters into protection mode due to

low battery, and you need to charge it and activate the battery.

2.Q:Device can be powered on, but can't operate or no sound at all.

A:Check whether the Transmitter and Receiver selects the same channel, if

not, please select the same channel then retry.

3.Q:Strange noise while in use.

A: There can be strong electromagnetic interference, too far transmission

distance, too many transmission obstacles, so most communications are

lost. Please keep the transmission distance as short as possible.

4.Q: Device cannot be charged properly.

A:Lithium batteries go into protective state when they are low for a long

time, so they need to be recharged about 10 minutes to active the battery.

5.Q: Can multiple Receivers receive signals from one Transmitter at

the same time?

A: Yes.You only need to select multiple Receivers for the same channel and

then select the Transmitter to that channel.

Extent Warranty:

www.getariamusic.com
